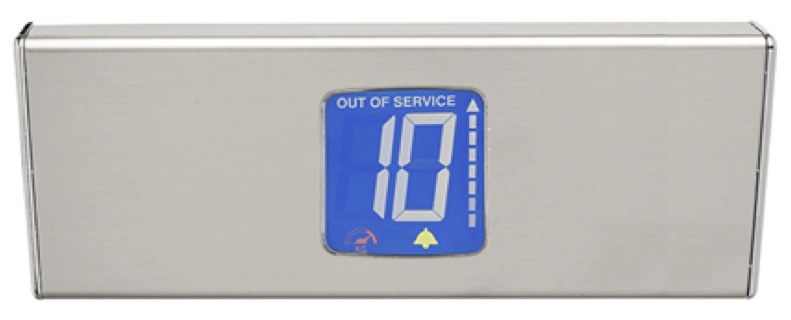

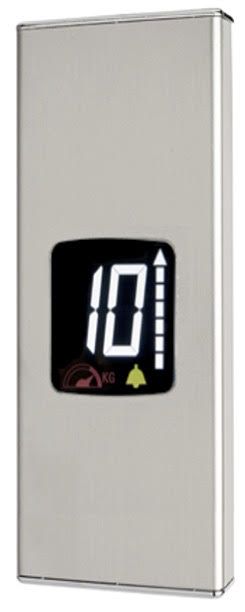

SURFACE-MOUNTED AET 4000

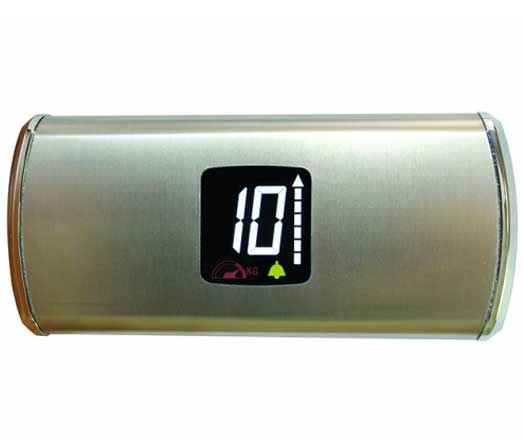

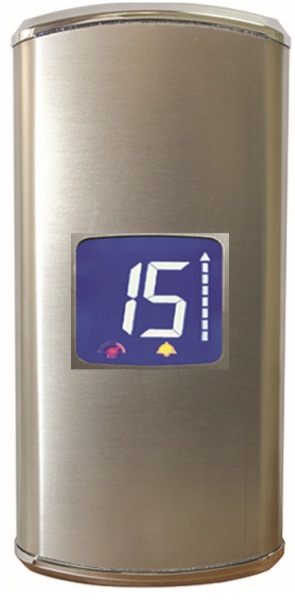

Car LCD display & straight and curved surface landing

Available in different colors

TECHNICAL SPECIFICATIONS

  • Useful surface LCD screen: Large model: 123 x 57 mm
  • Small model: 58 x 54 mm
  • Dimensions: depending on models
  • Button box insertion assembly: sheet thickness 3mm
  • Typology of characters: white on blue or black background
  • Number of stops: 32 floors (-4> 28)
  • Operation type: magnetic sensors
  • RS485
    A: Channel A RS485
    B: Channel B RS485
  • 24 VDC POWER SUPPLY
    Gnd Power (‐)
    VI Power (+)
  • OPERATING TEMPERATURE: from -15°C to +50°C
    STORAGE TEMPERATURE: from -25°C to +60°C
    • Sensor contact type: NO/NC
    • Elevator Speed: Max 1.6m/s
    • Programming by button on displays: Button SW1 and SW2
    • Signalling: floors, future direction gongs, alarm in progress, voice communication, overload and out of service
    • Power supply: 24VDC
    • Power: Max 2W
    • INPUTS 12/24Vdc ± 10%
      AA+/AA- YELLOW PICTOGRAM
      AR+/AR‐ PICTOGRAM GREEN
      MB: UPPER MAGNETIC SENSOR
      MA: LOWER MAGNETIC SENSOR
      OVL: OVERLOAD PICTOGRAM
      HS: DISPLAY OUT OF SERVICE
      PF: GONG AT THE OPENING OF THE DOORS
      SM: UP FUTURE DIRECTION DISPLAY
      SD: FUTURE DESCENT DIRECTION DISPLAY
      CONF: GONG CONFIGURATION (Diffusion of future direction gongs when stationary (M8) or when doors are opened (Entrance PF)
