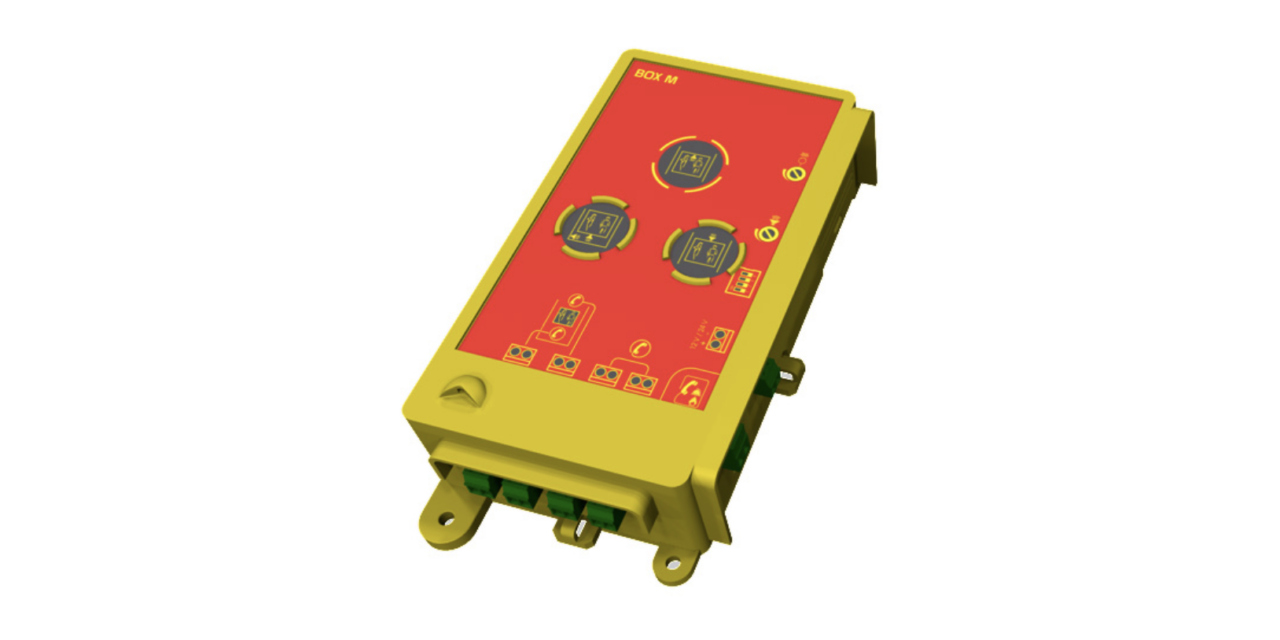

BOX-M

Elevator – goods lift – car lift – platform.
THE ANEP BOX M MODULE is an intercom system allowing communication between:
• the elevator machinery and the top of the cabin,
• the elevator machinery and the interior of the cabin,
• the elevator machinery and the pit, BOX-C (or under the cabin BOX-SC)
• The “FIREFIGHTER’S SQUARE” module at firefighter level and inside the cabin.

TECHNICAL SPECIFICATIONS

Ref.ANEP: A-AA-032

  • Elevator with travel greater than 30 meters / more than 10 levels.
  • The connections between the various peripherals are made on two wire links, preferably shielded to avoid any external disturbances.
  • ANEP BOX-C, ANEP BOX-TA (TA+, TX, TX+).
  • It allows the coupling on a single telephone line of a tripphone and a firefighter intercom (BOX)
