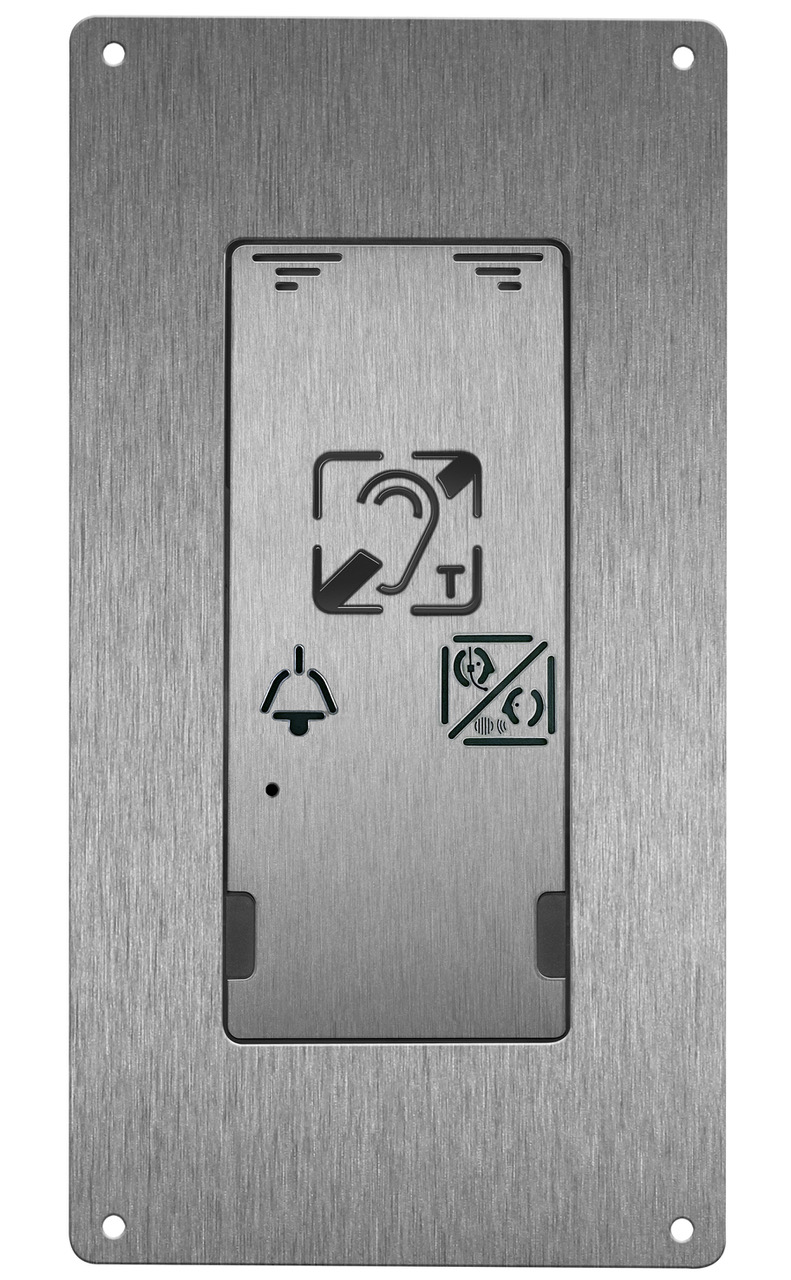

RECESSED MIDIS FACEPLATE

Recessed MIDIS breastplate placed in the cabin to make emergency calls.
Connects with our ANEP BOX (TA, TA+, TX and TX+).

Compliance with standards:

• EN 81-28: Remote alarm for new lifts 10/2003
• EN 81-70: Accessibility to lifts for all.
• Standards EN 81-1/81-2: Safety rules for the construction and installation of lifts

TECHNICAL SPECIFICATIONS

Ref.ANEP: A-AA-038

  • Dimensions (L x W x H): 176 x 85 x 22 mm
  • Protection index: IP 40
  • Weight With box & cables: 454 gr
  • Built-in speaker and microphone
  • Integrated inductive loop
  • Breastplate alone: 197 g
  • Green and yellow light
