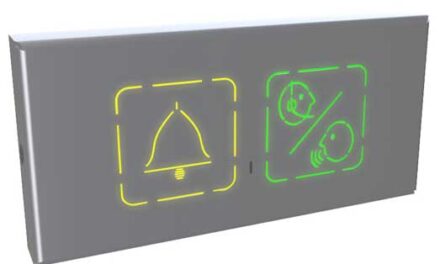

SURFACE-MOUNTED PVC MIDIS FACEPLATE PB
Faceplate MIDIS APPLIQUE PVC BP put in cabin to make emergency calls.
Connects with our ANEP BOX (TA, TA+, TX and TX+).
Compliance with standards:
• EN 81-28: Remote alarm for new lifts 10/2003
• EN 81-70: Accessibility to lifts for all.
• Standards EN 81-1/81-2: Safety rules for the construction and installation of lifts.
Ref. ANEP: A-AA-037
- Dimensions (L x W x H): 176 x 85 x 22 mm
- Protection index: IP 40
- Weight With box & cables: 454 gr
- Built-in speaker and microphone
- Integrated inductive loop
- Breastplate alone: 197 g
- Green and yellow light
